Car Washing Station

One of the many applications that Qiba's Digital VMC can be used for is in Car Washing Stations. On this particular one, all that is necessary is to activate a relay (which is connected to activate the Washing Circuit) upon payment.

So here is the user flow:

User can select 4 products, each corresponding to a given duration that the washing station will be active
When selected, user pays with Credit card
After Payment, the Washing Station is active.

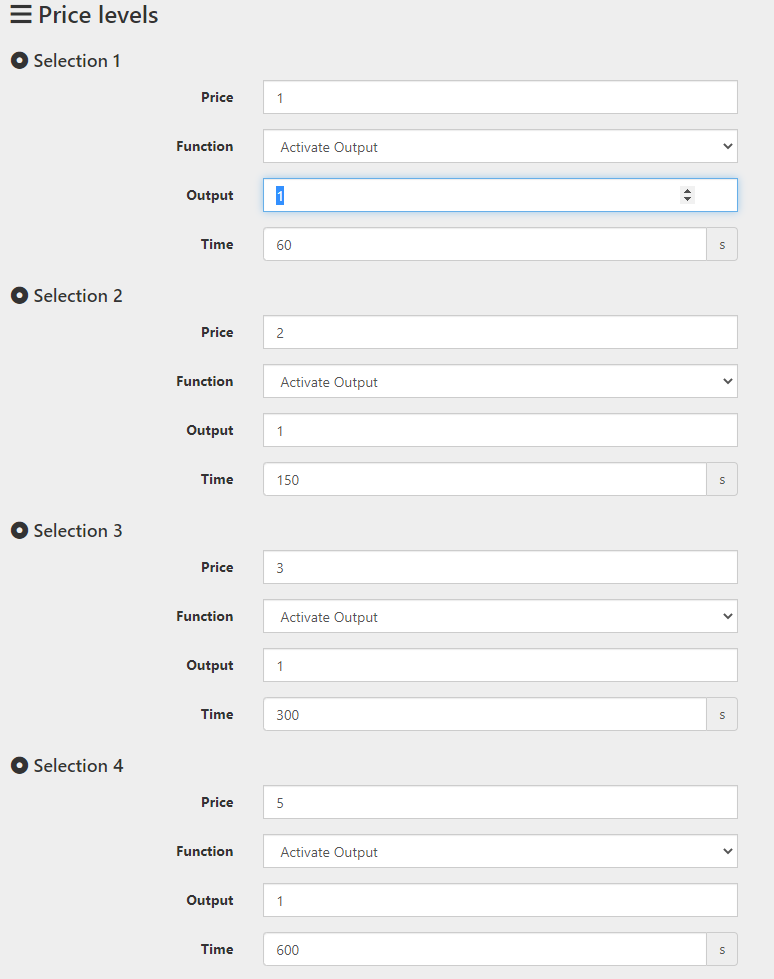

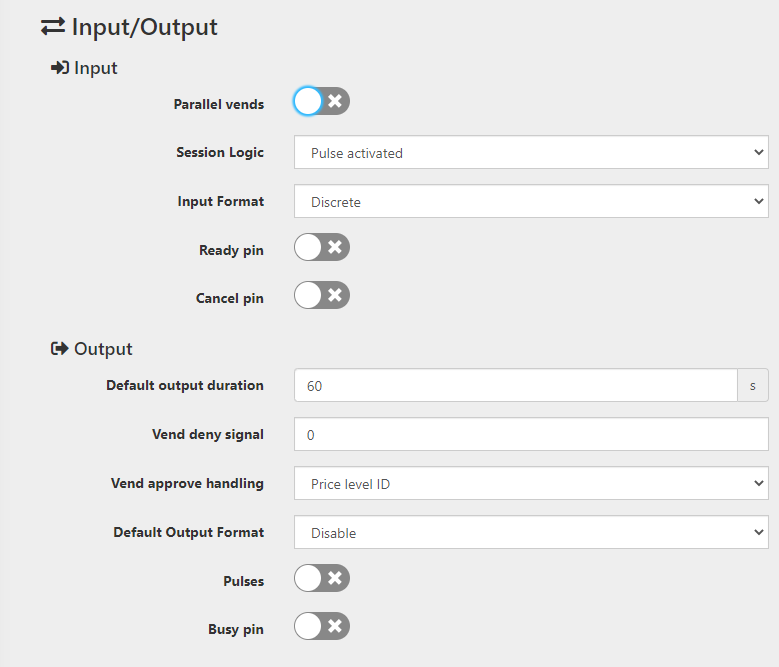

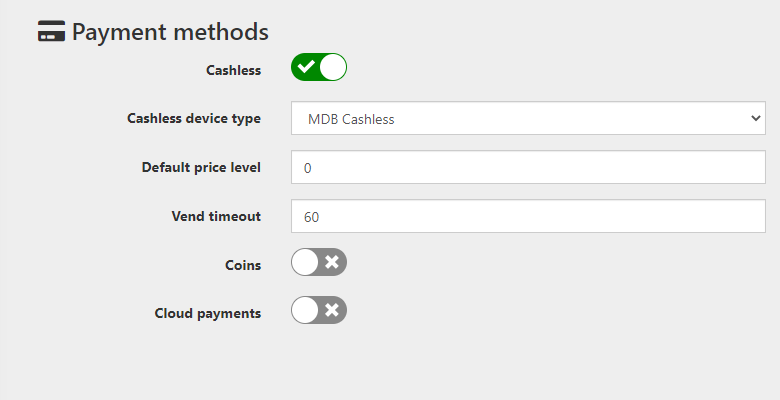

The configuration of each set of option is provided in the pictures below:

Note that all 4 selections are driving output 1, which has to be connected to the Washing Station.
