MDB Mini
The MDB Mini is the most compact MDB module in the Qibixx MDB interface production range. It provides the same standard features all of the MDB interfaces provide, namely MDB VMC (Master), MDB Peripheral and also Sniffing functions. With the small form factor and no external connectors it is ideally suited to be integrated on a customer PCB.The module is easy to integrate, the host application can connect via USB or TTL serial(3V3) interfaces. It can easily be integrated.
This devices use an ASCII based protocol (see API section) and to communicate with them, one must open a serial port by means of a standard terminal program (putty, minicom, termite...) or, if you are developing an application, use some library to do this for you. NO binary handling of data is required.
The MDB Mini can be power from the Micro USB connector or from the Communication Connector (VCC + GND). See the picture bellow.
Features
- Host interface: Micro USB or serial TTL 3v3;
- Micro USB Powerable and Controllable;
- Minimized dimensions;
- MDB VMC, Peripheral and Sniffer Capable;
Connectors
| Connector | Description |
|---|---|
| 1 | Communication Connector |
| 2 | MDB Connector |
| 3 | Micro USB Connector |
| 4 | Firmware Update. Sets the device to Update mode |
| 5 | Baudrate configuration By default the MDB Mini communicates with 115200 baudrate. If you need to communicate with 9600, you have to solder a Pin Header and close with a jumper. |

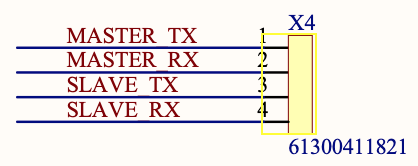

Communication & MDB Connector Schema
The Pins for serial communication are the iPAM TxD0 and the iPAM RxD0
