API

From an MDB Perspective, Pi Hat VMC uses the same API as other MDB products. To learn about the MDB API, please head over to API section and start by checking API General page.

In addition to the aforementioned, Pi Hat VMC was enhanced with I/O operation Capabilities, namely activate output and read Input values.

Activate Output

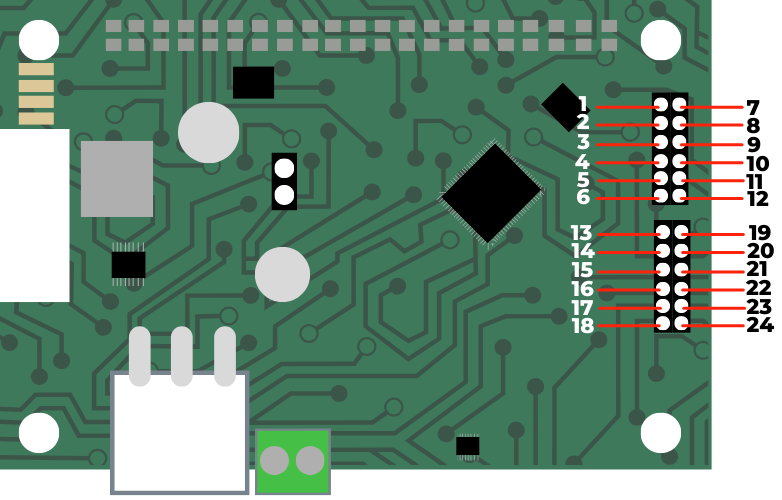

Pin	API Index
14	Driver High 1
20	Driver High 2
15	Driver High 3
21	Driver High 4
22	Driver Low 1
17	Driver Low 2
23	Driver Low 3
18	Driver Low 4
24	Driver Low 5
12	Input 1
6	Input 2
11	Input 3
5	Input 4

Activate Output


O,<OUTPUT_INDEX>,<VALUE>
Copy

Example


O,1,1o,1,1
Copy

Manual Read Input

Manually Read Inputs


I
Copy

The hex value below is given by the active inputs. Each active input will correspond to the input index bit with a value 1 on the hex value given by the "I" command.

RESPONSE


I,< Hex value of the active input bits>
Copy

Example


Ii,00 #No inputs are activeIi,03 #Inputs 1 and 2 are active
Copy
